Look around a typical filtration system and chances are, you will find filter bag units installed. They are a proven, economical method of filtration, useful for bulk removal of solids in the fluid. Depending on the filter bag selection, some can even assist in removing oil or water from the process. Changing out the bags is a simple process and contaminants captured on the inside of the bag, facilitating easy disposal and clean up.
Limitations of Bag Filters
Despite this, filter bags have certain limitations such as its nominal filtration efficiency (about 90%), as well as low dirt holding capacity. If you find yourself replacing filter bags too frequently (causing costly process downtime), or if you want absolute performance (99.9%) from your system (to reduce load on downstream filters), it is well worth using a pleated filter bag instead.
Here's how we can help

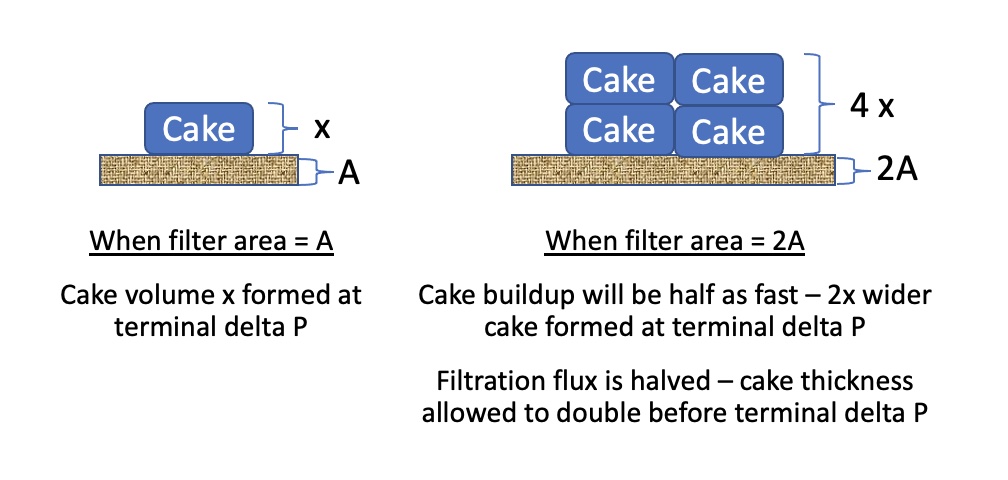

FILTRAFINE HIE Series Pleated FIlter Bag allows you to increase the filtration area by more than 100% for the same bag housing. Keeping in mind that flow rate is a function of the square of the filtration area; doubling the area can result in 4x the flow rate, which is equivalent to increasing filter lifespan by 4x. A diagram explaining this in terms of filter cake size is shown below:
Combined with the absolute filter media, you will not only see an increase in filter life for this system, but also for downstream units, further compounding your changeout cost/manpower savings.
For high temperature operations
Filtrafine HIE also comes in glass fibre media with a stainless steel flange option for high temperature filtration (up to 105ºC)
As well as for standard applications
HIE Series pleated bag filters are suitable to be used in the following applications:
- Final product filtration for oleochemicals (FDA approved filters available)
- Trap filter for DE fines in Breweries and Bottling Plants
- Paint feedstock, intermediates and final product in the Automotive industry
- Resins and coatings, acids, alkali, solvent, silicone solutions and many more…
Further details of our HIE can be found here.
Contact FILTRATION TECHNOLOGY for assistance with increasing your filter lifespan now!
We’d love to hear your opinions, comments and thoughts so please feel free to comment below. If you would like us to work on your filtration issues, please drop us an email and we’d be happy to!
